Customizations to ensure that you can get the right goods lift for your particular industry needs.
We recommend and offer different freight elevator styles based on your desired application and specific requirements.
Robust equipment that can be equipped with different types of protection !

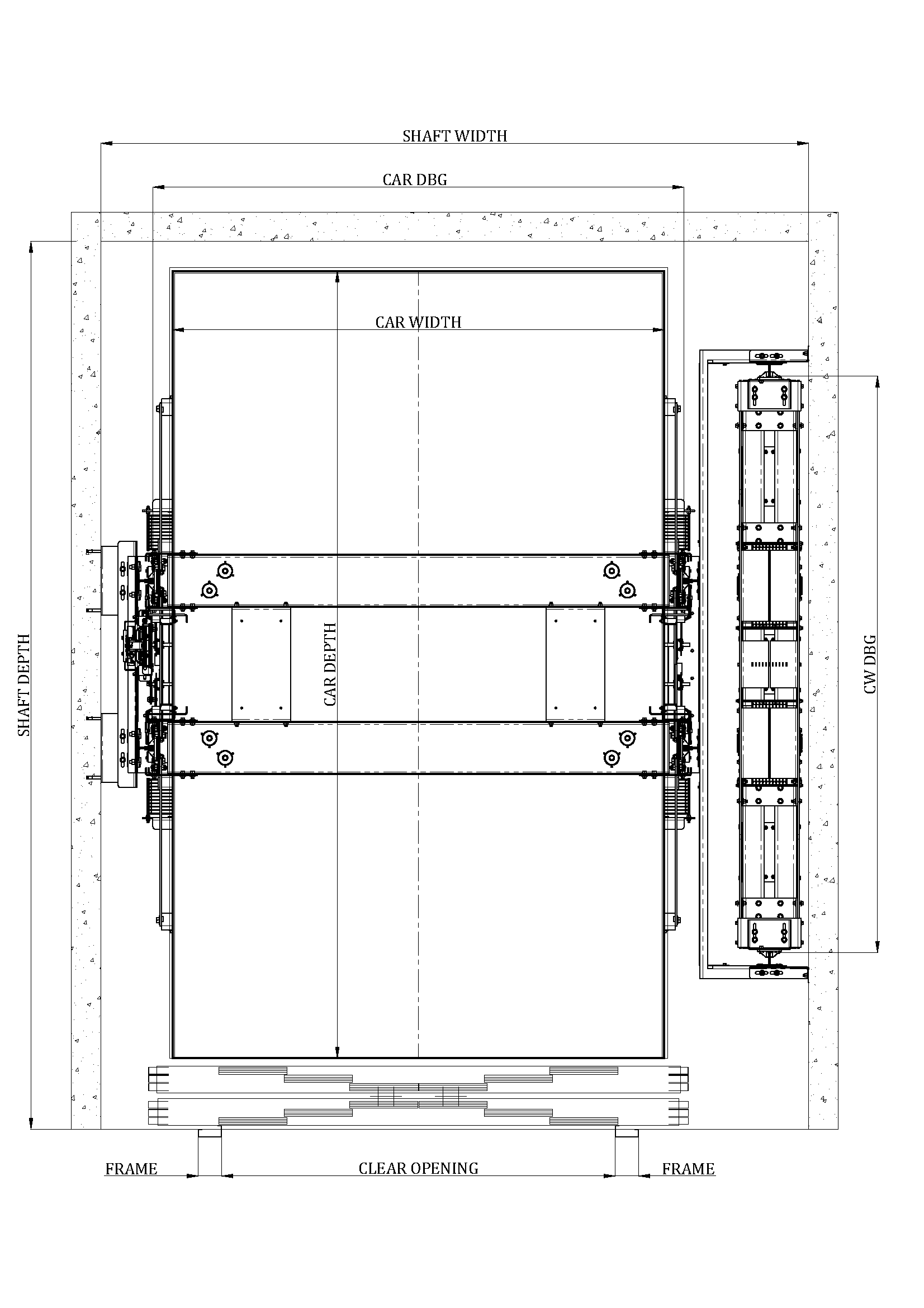

COLOSSUS - 6000 Kg
Though, efficient gearless elevators, built to move heavy loads up to 6000Kg, EN81.20/50 compliant.
COLOSSUS
Lista de servicios
-
General SpecsElemento de lista 1
Max load Q = 6000 Kg
Traction 4:1
Max Speed 0.8 m/s.
Min Pit 1900 with Anti-drift system
Min Pit 1400 without Anti-drift system.
Min Headroom 3700mm with cabin 2240 external height.
Compact designed for a total comfort.
One of the smallest required headrooms in the market!
-
Anti-drift systemElemento de lista 2
Anti-drift system with mechanical wedges (Optional)
-
DoorsElemento de lista 3
Choose between Wittur Pegasus Supra and Meiller Heavy Duty doors
Meiller Heavy Duty models:
Side opening three panel TTS/K 31 HD S/K 3 R/L HD
CDW = 700 - 2500 mm
CDH = 2000 - 4500 mm
Centre opening four panel TTS/K 28 HD S/K 4 Z HD
CDW = 1200 - 3200 mm
CDH = 2000 - 4500 mm
Centre opening six panel TTS/K 32 HD S/K 6 Z HD
CDW = 1800 - 4000 mm
CDH = 2000 - 4500 mm
-
Electrical SpecsElemento de lista 4
ZenONE with Thor control for heavy duty lifts
